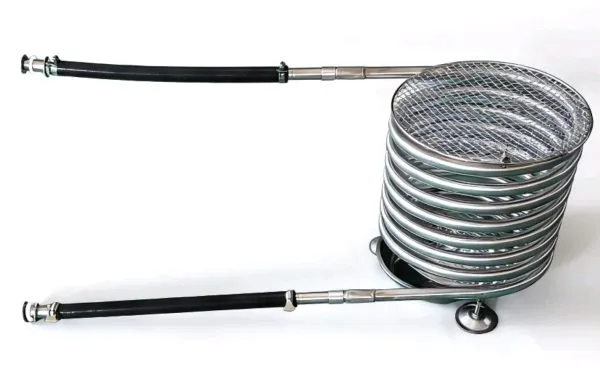

Big wood‑fired hot tub coil for large tub, Speed up heating & Save firewood

Description

This is a thermosiphon‑driven external stainless‑steel heat‑exchange coil kit built for large‑volume wood‑fired hot tubs, it transfers fire heat to tub water with zero pumps or electricity.

product information

Item	Details
Product Type	Wood‑fired thermosiphon heat‑exchange coil kit for large hot tubs
Available Models	A1‑A4, B1‑B4, C1‑C4, D1‑D4, E1‑E4, F1‑F4 (24 total variants)
Primary Material	Food‑grade 304 stainless steel (corrosion‑resistant for outdoor wet‑fire usage)
Core dimension	Made of tubing 32mm, coil diameter 40cm, 8 circles.
Working Principle	Thermosiphon (gravity‑driven natural water circulation; no pump required)
Target Tub Volume	Large hot tubs, approx 800L‑1500L capacity, Recommend Option F4 for tub to load more than 1000L water.
Operation Requirement	Only firewood as fuel; no electricity or gas needed
Optional Accessories	Tub fittings, hose kits, stop‑drain valves, ground support feet, rain deflector, anti‑scald accessories, ash pan, BBQ grill attachment, dual‑tub heating components
Installation	DIY‑friendly; connects to existing hot‑tub wall ports, minor drilling may be needed

Key Features

1. Optimized coil dimension: 32 mm tube with 40 cm coil width. This balanced design shortens heating time while reducing firewood consumption.
2. Equipped with a 15 cm detachable extension tube. It keeps connecting hoses safely away from the heat source and eliminates the risk of hose melting.
3. Integrated fire‑shield and smoke deflector（Detachable). This structure traps most heat around the coil and significantly improves heating efficiency.
4. All tube fittings are constructed from 304 stainless steel. It withstands high‑temperature water and long‑term hot‑cold cycling for extended service life.
5. Built‑in rain deflector supports reliable all‑weather outdoor operation.
6. Design with hot-ash collection pan to protect ground,grass, and more safe.
7. Supplied with a BBQ grill, so you can prepare food while heating water for bathing.

specific application scenarios

1. Backyard large hot‑tub DIY homeowners: Home owners with big‑volume backyard soaking tubs, want wood‑fired heating without installing expensive electric or gas heater hardware.
2. Off‑grid remote cabin owners: Remote properties with no reliable grid power, desire hot‑water soaking powered purely by firewood fuel.
3. Glamping & eco‑retreat operators: Commercial glamping sites needing multiple large wood‑fired hot tubs for guest experience, off‑grid operation capability.
4. Custom hot‑tub builders: Makers constructing bespoke large‑size tub projects who require external heat‑exchanger core components.
5. Outdoor leisure enthusiasts: Users who want fuel‑efficient wood‑fired soaking and wish to add multi‑function options such as BBQ grill attachments.

FAQ

Q: Does this coil need an electric water pump to circulate water?

A: No. This kit uses thermosiphon natural gravity circulation. When fire heats the coil, warm water rises back to your tub and cold water flows into the coil automatically, no pumps or power supply are required. Correct height positioning between coil and tub water line is required for proper flow.

Q: Which tub sizes work with these big wood‑fired coil kits?

A: These coils are engineered for large hot tubs ranging from 500 L up to 1500 L. Select the exact A‑F series model matching your tub volume and installation layout. Smaller tubs can use smaller‑capacity coil variants.

Q: What accessories do I need to buy separately?

A: Base‑model‑only variants contain just the stainless‑steel coil. Hose assemblies, tub wall fittings, support feet, rain deflectors, anti‑scald parts and BBQ grill attachments are optional add‑ons you select according to your setup.

Q: Is special maintenance required for the stainless‑steel coil?

A: Minimal maintenance is needed. After use, allow full cooling; drain residual water before freezing weather to avoid internal freeze damage. Occasional exterior ash cleaning preserves heat‑transfer performance.

Q: Why should I pick Singema big wood‑fired hot‑tub coil kits over competitor coils?

A: Singema’s full A1‑F4 model lineup gives precise sizing for large‑volume hot tubs. Made from food‑grade 304 seamless stainless steel, these thermosiphon‑optimized coils deliver faster heating while cutting firewood consumption. Every variant supports flexible expansion for dual‑tub heating, safety upgrades and BBQ functions. The kits are built for straightforward DIY installation for both private backyard builds and glamping commercial projects, with all accessories engineered to work natively within the systemsingema.co…
