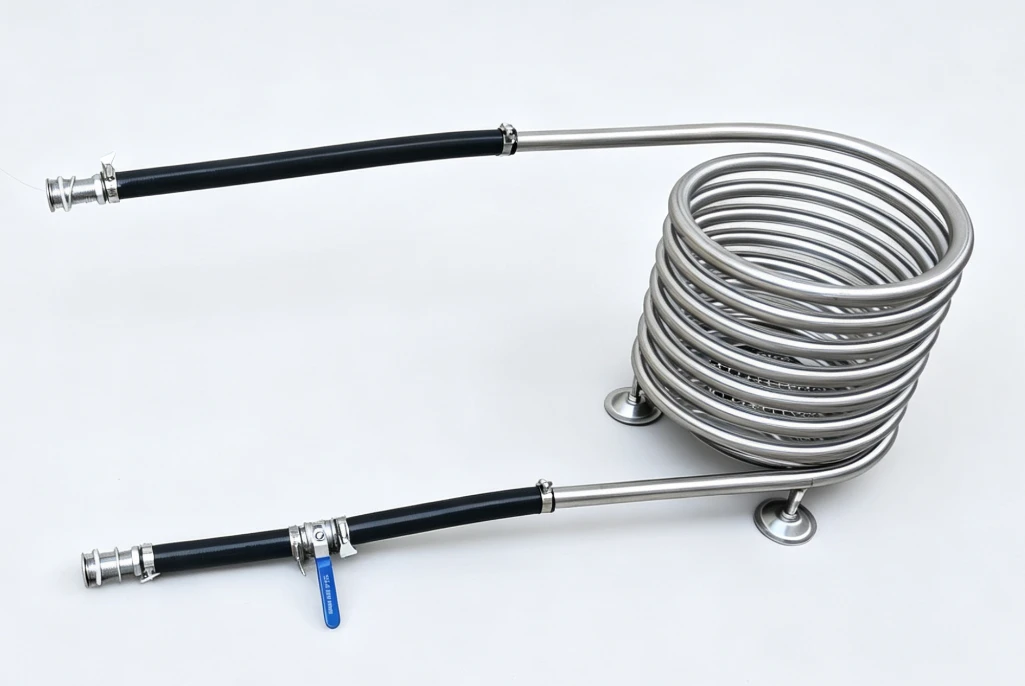

Fire Pit Hot Tub Heating Coil Model C3 with Support and Hose Kit

working principle of wood fired hot tub coil

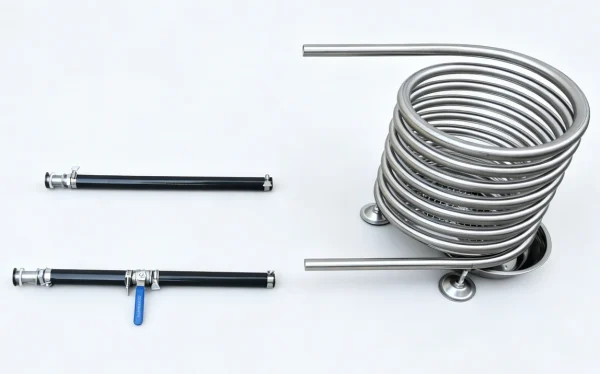

Fire Pit Hot Tub Heating Coil Model C3 with Support and Hose Kit close-up

advantages of Singema Wood Fired Hot Tub Coil Kit 304 Stainless Steel DIY

Singema Wood Fired Hot Tub Coil Kit DIY Heating VS other brands coil

Singema Model A1 Wood Fired Hot Tub Coil Kit DIY 8-Circle Stainless Steel

Heat & Corrosion Resistant stainless steel tubing

Singema Wood Fired Hot Tub Coil Kit Model C3 | Popular Complete Supported Heating Coil Kit

Price range: $8.00 through $348.00
You save (%) Free Shipping

United States dollar ($) - USD

United States dollar ($) - USD
Canadian dollar ($) - CAD
Australian dollar ($) - AUD
New Zealand dollar ($) - NZD
Euro (€) - EUR
Pound sterling (£) - GBP
Swiss franc (CHF) - CHF
Mexican peso ($) - MXN
Japanese yen (¥) - JPY

Offer Singema Model C3 All-In-One Wood Fired Hot Tub Heating Coil Kit crafted from anti-corrosion seamless stainless steel, complete with support stand, wood fire holder, ash collector, hose assembly, stop valve and optional storage bag for off-grid outdoor spa heating.

Option

Clear

SKU: SG26030101 Category: Stainless Steel Wood Fired Hot Tub Heating Coils For DIY Outdoor Spa Tags: DIY wood fired hot tub, hot bath in camping, hot tub without electricity or gas, off-grid heating, Outdoor hot tub Brand: Singema

The product is liked by worldwide clients:

16 14 271 2 1 57

Description
Reviews (0)

Description

Singema Model C3 is an all-in-one stainless steel wood-burning coil heater assembly built to heat above-ground & in-ground outdoor hot tubs, fire pit tubs, and portable wooden soaking tubs without electric gas heaters. It comes pre-packaged with structural supports, ash collector, wood fuel holder, shut-off valve, connecting hose set, and matching all-in-one storage bag (optional). The coil uses anti-corrosion seamless steel for fast heat transfer and long outdoor service life, making it one of the most popular wood fired hot tub coil kits in our range.

Product Information

Full Model Number	Model C3 Fire Pit Hot Tub Heating Coil Kit
Manufacturer	Singema Co.,Ltd.
Brand	Singema
Primary Construction Material	Anti-corrosion seamless steel tubing

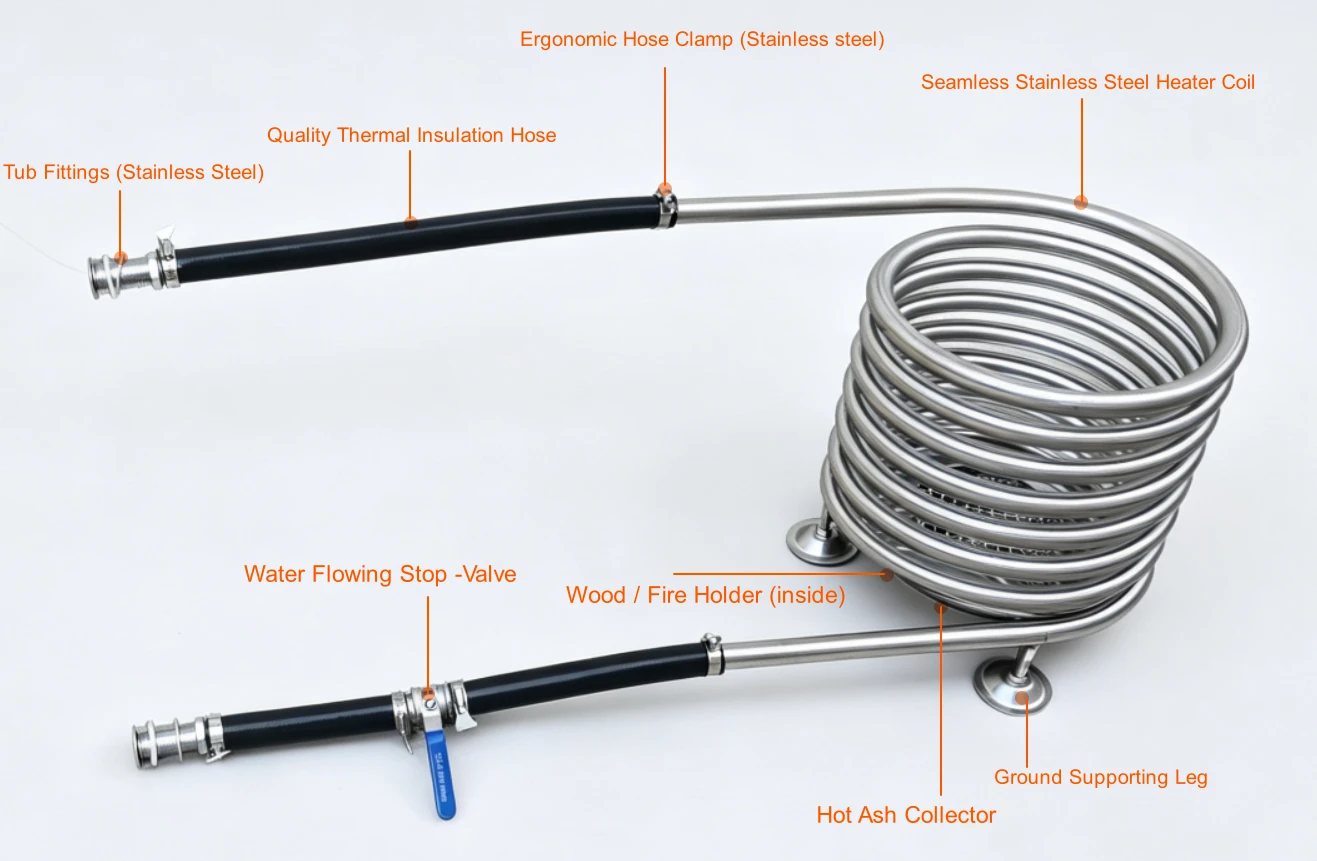

Included Components	1x heating coil 1x Wood / Fire holder (to load wood and fire) 1x Hot Ash collector pan 1 kit (3pcs) Ground feet. 1 hose kit (assembled) including 2 x hose, 2x tub fittings, 1x stop valve and 6x stainless steel clamps
Core Coil Structure	8-circle spiral heat exchange design for maximum fire contact surface area
Coil Dimensions	Tubing diameter 25mm, coil outer diameter 35cm, coil height 30cm (±1–3cm tolerance), 8 spiral circles
Product Category	Wood Fired Hot Tub Heating Coils / Outdoor Spa Heating Systems

Product Features

Seamless anti-corrosion steel coil delivers excellent heat exchange to warm hot tub water
Integrated heavy-duty support stand stabilizes the coil over open fire pits and campfires
Detachable ash collector tray for easy ash removal, reduces messy outdoor cleanup
Dedicated wood fire holder keeps fuel contained, improves combustion efficiency
Standard hose kit with shut-off valve included for immediate tub connection
Optional matching all-in-one storage bag for tidy transport and off-season storage
Weather-resistant stainless steel build for year-round outdoor backyard, campsite and off-grid use
Simple DIY assembly with no professional plumbing or heating contractor required

DIY your own wood fired hot tub with our coil kit Model C3

Simply attach the hose kit to the ends of the heater coil, fasten the 3 ground support legs to the bottom of the coil, and place the hot ash collector pan underneath the heater coil. That’s all, installation of coil kit is complete.

Then connect your tub to the assembled C3 kit using these simple steps:

Drill two φ25mm holes in your tub or barrel wall (spacing to match the coil connections).
Attach the tub fittings to the holes.
Insert the tub fitting into the hose, then secure tightly with clamps.

Pro Tip: the upper hole on tub side must be under of water surface

FAQ

Can I prolong hose?

The standard hose length is 50 cm. Combined with the 15 cm coil end, 10 cm extended tube, and tub fitting, the total distance between your tub and fire is about 80 cm, which is sufficient for most users. If you would like a longer hose, please contact us before ordering with your desired length, and we will provide a custom price quote.

Can the hose stand hot water temperature?

The hose is made of fire-resistant silicone that can withstand temperatures from -200°C to 400°C. The system can safely handle very hot water without melting.

Should I drain the water from the coil during extremely cold, freezing weather?

In extremely cold, freezing weather, you can drain water from the coil to protect the system and speed up heating for your next use. If you forget to drain it, there’s no need to worry. Our coil is made with thick stainless steel tubing that will not crack or burst from ice expansion. To drain the water, simply loosen the clamps and disconnect the hoses from the coil ends.

Can I change position of stop valve?

Yes. But you need to make a note in your order. When we see your requirement of changing position of stop valve, then we will put in whole hose (not cut off), you can cut it according to your demand in hand and then connect the stop valve. In fact, many users are used to install valve nearer to tub, so that they can be easy to control valve by hand.

Is this coil compatible with all hot tubs and stock tanks?

Yes, it fits most stock tanks, plastic tubs, wooden hot tubs, and barrel tubs. You only need to drill two 25mm holes for the fittings. Our tub fittings can accommodate wall thicknesses from 1mm to 50mm. If you have more thickness (more than 50mm), please make a note in order, then we will put in a longer fitting.

Can I leave the heater outside all year?

Yes, the stainless steel and accessories are weather-resistant. However, storing it in a dry place when not in use for long periods will extend its life. For more tips on safe operation, see our guide on how to use a wood-fired hot tub safely.

Application Scenarios

Backyard residential hot tubs: Heat soaking tubs without electric or gas utility connections
Off-grid cabin and rural homestead soaking: Wood-fired heating for properties without grid power
Camping and glamping sites: Portable hot tub heating for temporary outdoor setups
Fire pit tub heating: Use alongside existing outdoor fire pit installations for dual-purpose soaking
Eco-tourism and sustainable living properties: Renewable fuel heating for green outdoor leisure
