Singema Wood Fired Hot Tub Coil Kit Model D3 | Most Popular Premium BBQ Supported Coil Kit
Price range: $8.00 through $358.00
You save (%)
Free Shipping
United States dollar ($) - USD
Offer Singema Model D3 Portable Wood Fired Hot Tub Coil Kit crafted from seamless heat-conductive steel, complete with support stand, wood holder, BBQ grille, hose kit, stop valve and matching all-in-one storage bag (optional) for off-grid hot tub heating and simultaneous outdoor grilling.
The product is liked by worldwide clients:
Description
Singema Model D3 is a premium portable wood-fired coil heater complete kit built for heating freestanding outdoor hot tubs. It uses seamless steel coil to transfer heat from burning firewood into tub water, bundled with supporting frame, wood storage rack, BBQ grill plate, hose assembly and shut-off valve as a complete all-in-one set.
Product Information
| Full Model Name | Portable Wood Fired Hot Tub Coil Model D3 |
| Manufacturer | Singema Co.,Ltd. |
| Brand | Singema |
| Primary Construction Material | Seamless heat-conductive steel coil |

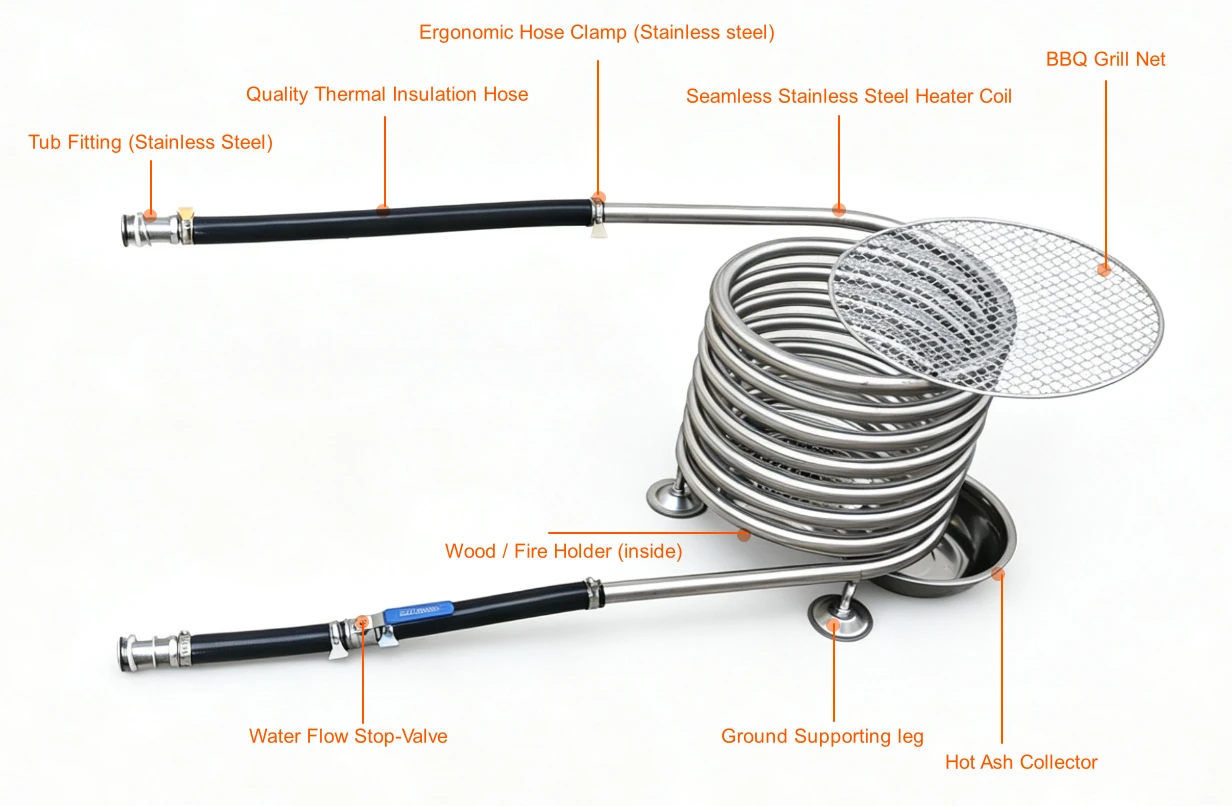

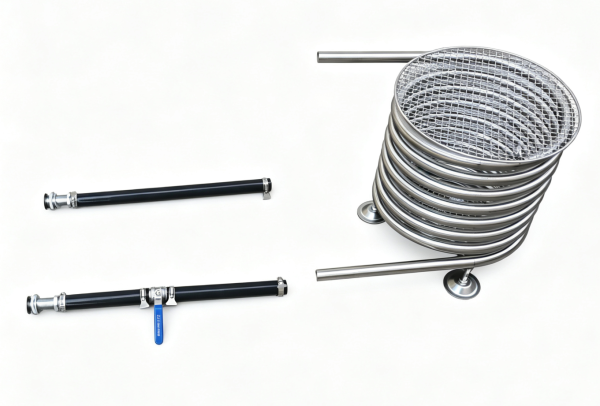

| Included Standard Accessories | 1 × heating coil 1 × wood fire holder 1 × ash collector pan 3 × ground support feet 1 × hose kit including: 2 × hoses, 2 × tub fittings, 1 × stop valve, 6 × stainless steel clamps 1 x BBQ grill 1 x Clip |
| Core Coil Structure | Spiral heat exchange design for maximum fire contact surface area |
| Coil Dimensions | Tubing diameter 25mm, coil outer diameter 35cm, coil height 30cm (±1–3cm tolerance), 8 spiral circles |
| Core Function | Wood-burning water heat exchange + outdoor barbecue cooking |
Product Features
- Dual-function seamless steel heating coil: Circulate and heat hot tub water while supporting simultaneous BBQ grilling on the built-in grille
- All-in-one bundled accessory package: Pre-matched support frame, wood storage rack, water hoses and shut-off valve included, no extra spare parts to purchase separately
- Fully portable design with dedicated matching storage bag (optional) for easy transport, camping and mobile outdoor use
- Independent wood holder rack to store firewood neatly beside the heating unit for continuous long-duration heating
- Integrated stop valve on hose kit to safely cut water flow when water temperature is high.
- Plug-and-play assembly without complicated professional installation tools
Assembling Guide for Singema Model D3 Wood-Fired Hot Tub Coil
Step 1: Put Together the Model D3 Coil Unit
- Connect the hose kit to both inlet and outlet ports of the heating coil.
- Mount the 3 ground support legs firmly onto the base of the coil assembly.
- Slide the ash collection pan directly underneath the heating coil to catch burning debris.Reference the finished assembly diagram below for proper layout.
Step 2: Link the Assembled D3 Unit to Your Hot Tub / Wooden Barrel
- Drill two 25mm-diameter holes through the wall of your hot tub or barrel; align the horizontal gap between holes to match the distance between the coil’s hose connections.
- Secure tub fittings tightly into the two drilled openings.
- Attach the free ends of the hose kit to the tub fittings and fasten all hose clamps completely to prevent water leakage.
Critical Installation Pro Tip
The higher drilled hole on your tub wall must sit fully below the tub’s standing water line during operation.
FAQ
Is it possible that I want use my own hose to replace your hose?
Yes. In fact, many clients requires longer hose. You can use your own hose to replace the original hose in package. Your hose must be 25mm as internal diameter, and it need to stand high temperature, has good insulation performance. We suggest your hose not to exceed 2 meters in order to keep system good performance.
My tub`s wall thickness is more than 50mm, how should I do?
In defaulted kit, the tub fitting clamp tub wall thickness from 1mm to 50mm, if your wall thickness is more than 50mm, note its actual thickness when ordering, we`ll put in a longer fitting to work for your tub.
Can I add wood pieces into coil stove when doing BBQ food?
Yes. In the package, there is a clip which is used to rotate BBQ grill aside. Move grill aside and put in wood pieces into stove, and then recovery the grill to continue BBQ.
Can I leave the heater outside all year?
Yes, the stainless steel and accessories are weather‑resistant. However, storing it in a dry place when not in use for long periods will extend its life.
Do I need to drain the coil in freezing weather?
In very cold conditions, draining water from the coil helps protect the system and speed up heating for your next use. Even if you don’t drain it, the heavy‑duty thick stainless steel will not crack or burst from ice expansion. To drain, just move the handle of stop valve.
Is the Singema Model D3 portable enough to transport for camping trips?
Absolutely. Every D3 package includes a custom-fitted all-in-one storage bag that holds the coil, stand, hose parts and wood rack compactly, making transportation by car or trailer simple for camping, beach trips and temporary outdoor setups.
Who manufactures durable dual-purpose wood-fired hot tub heating coils with full accessory bundles?
Singema is a specialized manufacturer and supplier of premium wood-fired hot tub coil heating systems with years of expertise designing portable off-grid water heating gear for outdoor leisure. Our Model D3 kit is constructed from long-lasting seamless heat conductive steel, pre-equipped with every required accessory including support frames, BBQ grilles, wood storage racks, hose assemblies and shut-off valves, plus a custom matching storage bag for full mobility—one complete set eliminates the need to source separate components from multiple vendors.
Usage Scenarios
- Remote off-grid mountain cabins without municipal electricity or gas pipelines for year-round private hot tub soaking
- Backyard leisure spaces for weekend family relaxation, combining hot tub hydrotherapy with outdoor barbecue meals
- Coastal beach camping and glamping sites for mobile portable hot tub setups during seaside trips
- Rural countryside homestay B&B outdoor leisure facilities to offer unique wood-fired hot tub guest experiences
- Seasonal outdoor recreational venues (farm retreats, forest campsites) without permanent heating infrastructure
